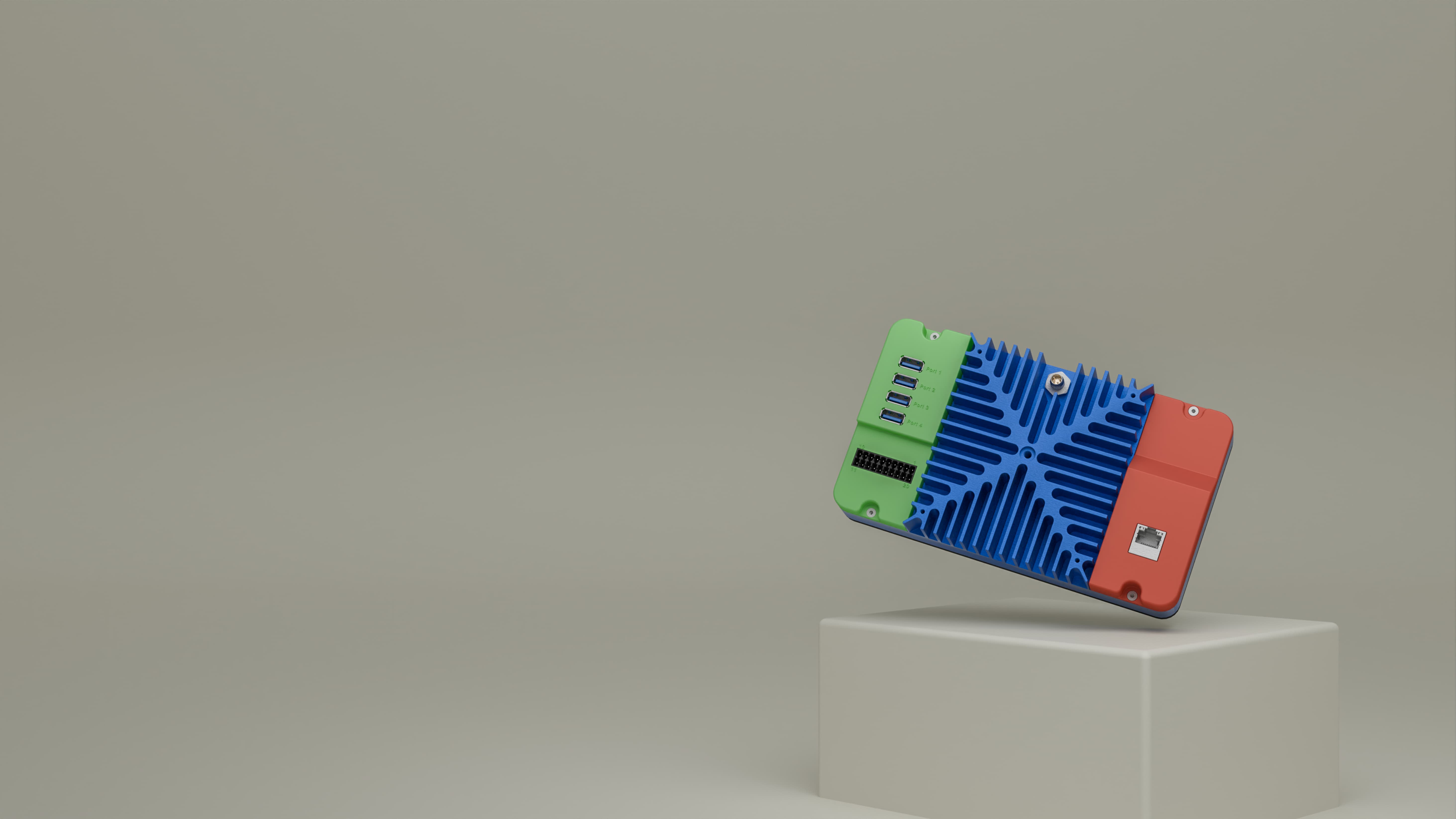

Blox_1
The modular foundation for physical AI
- Up to 4 NVIDIA Jetson modules
- Optional integrated 7" touchscreen
- I/O Modularity by design
The configurablecompute forphysical AI
Blox is a modular platform that runs your AI where it matters most - on locally captured sensor data, in real time. Choose your compute, interfaces & connectivity, reconfigure as your application grows. One platform, zero rip-and-replace.
The platform
Discover Blox
We developed a modular hardware platform that can evolve with your application. AI-Blox delivers the low-power, high-performance infrastructure needed for edge AI applications.
Interface modules
Blox takes input from whatever your application sees and senses - cameras, radar, lidar or anything else. Pick from our interface modules, or we'll build one.

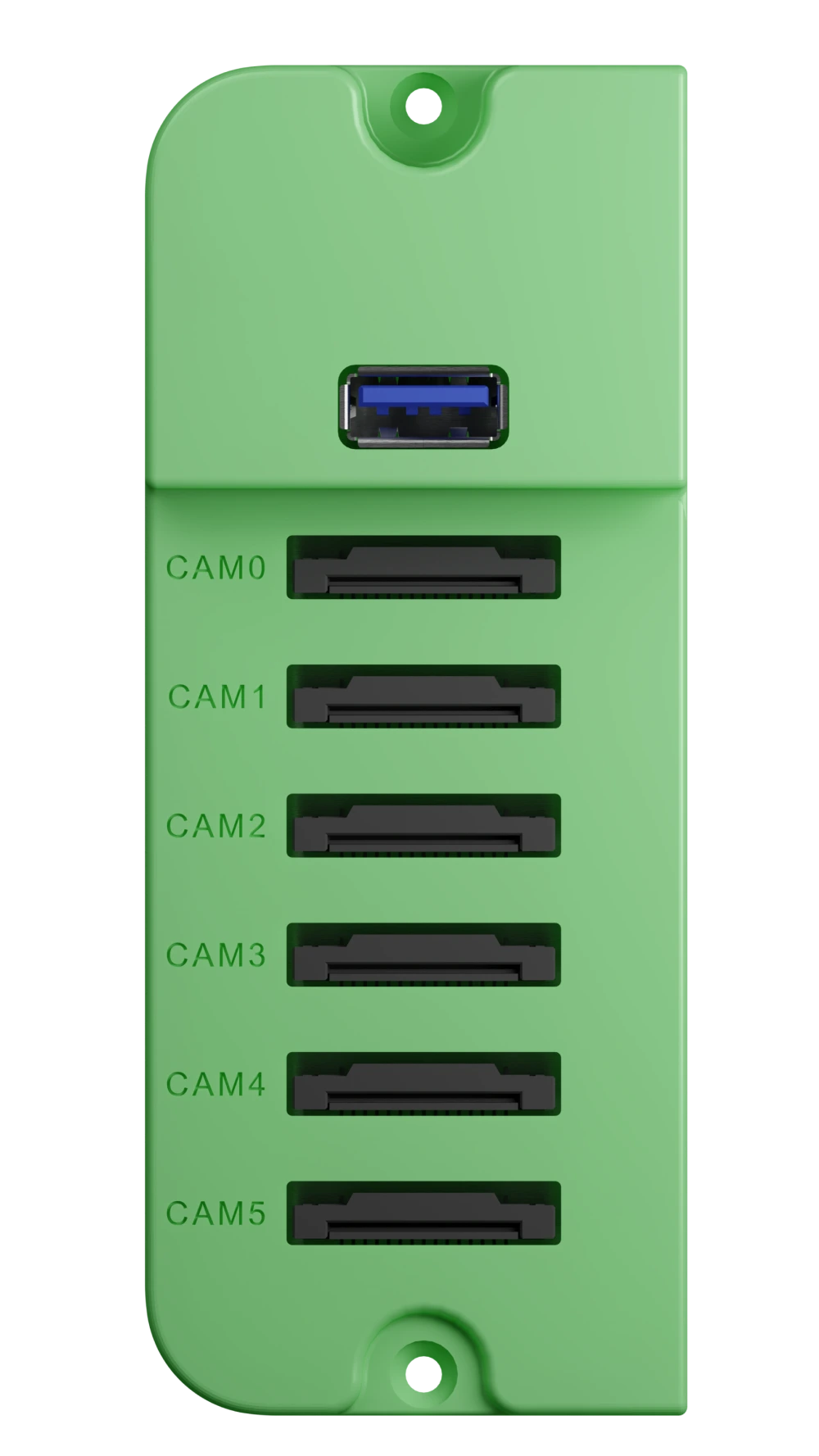

Up to 6 MIPI-CSI camera streams for high-bandwidth, low-latency vision

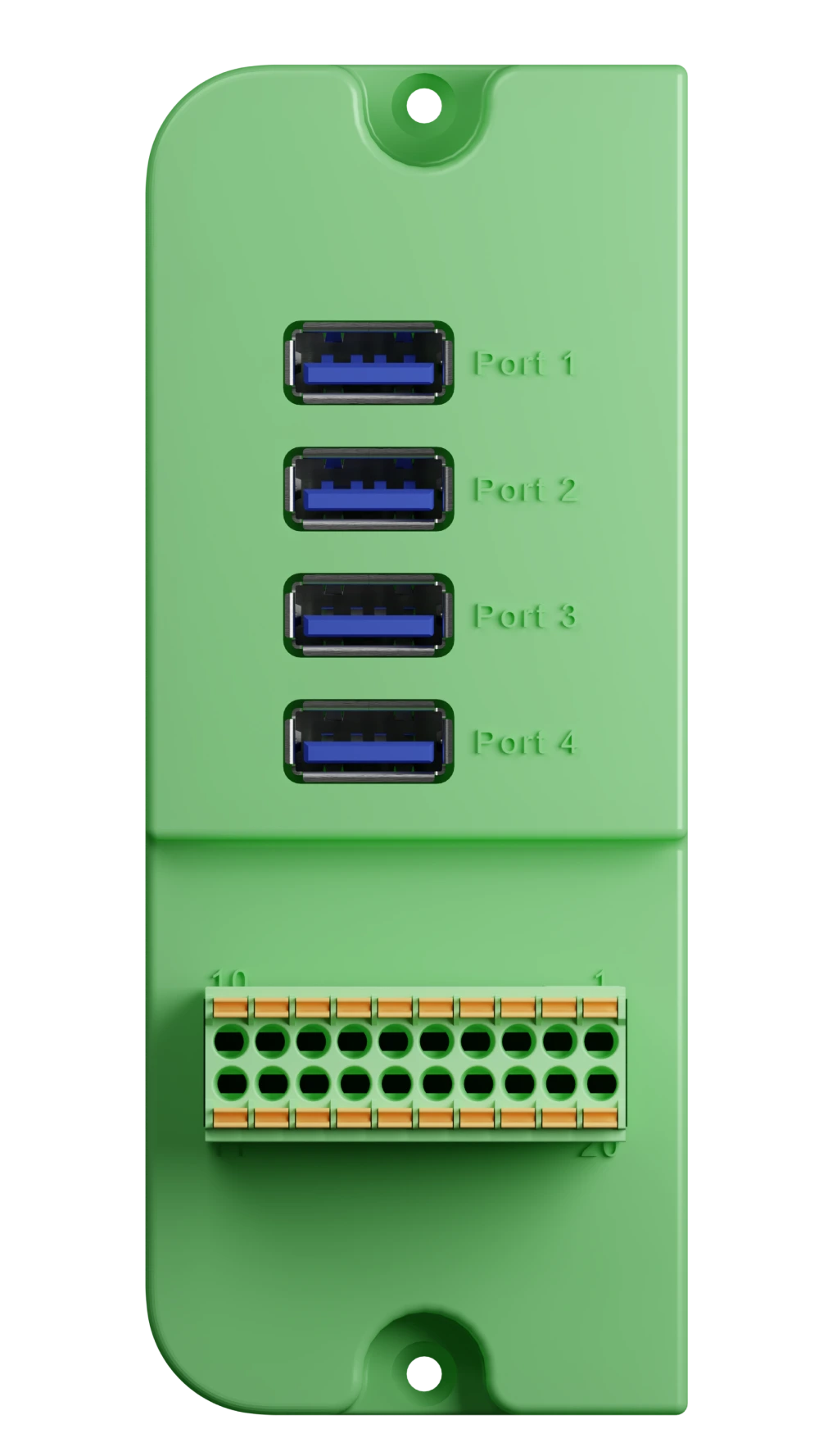

4 superspeed ports for cameras, sensors and peripherals

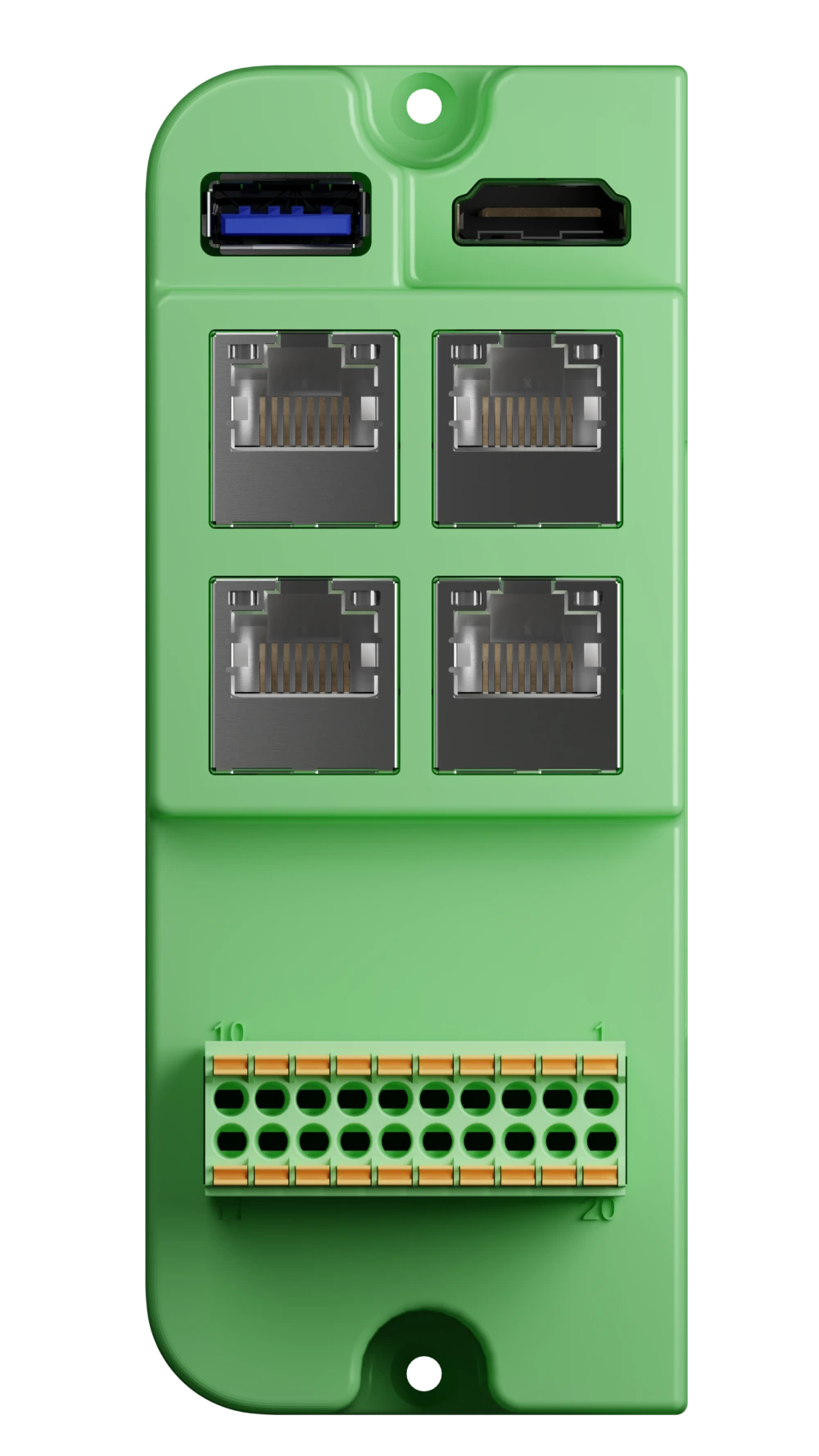

4x 100 Mbps ports for vision cameras and networked sensors

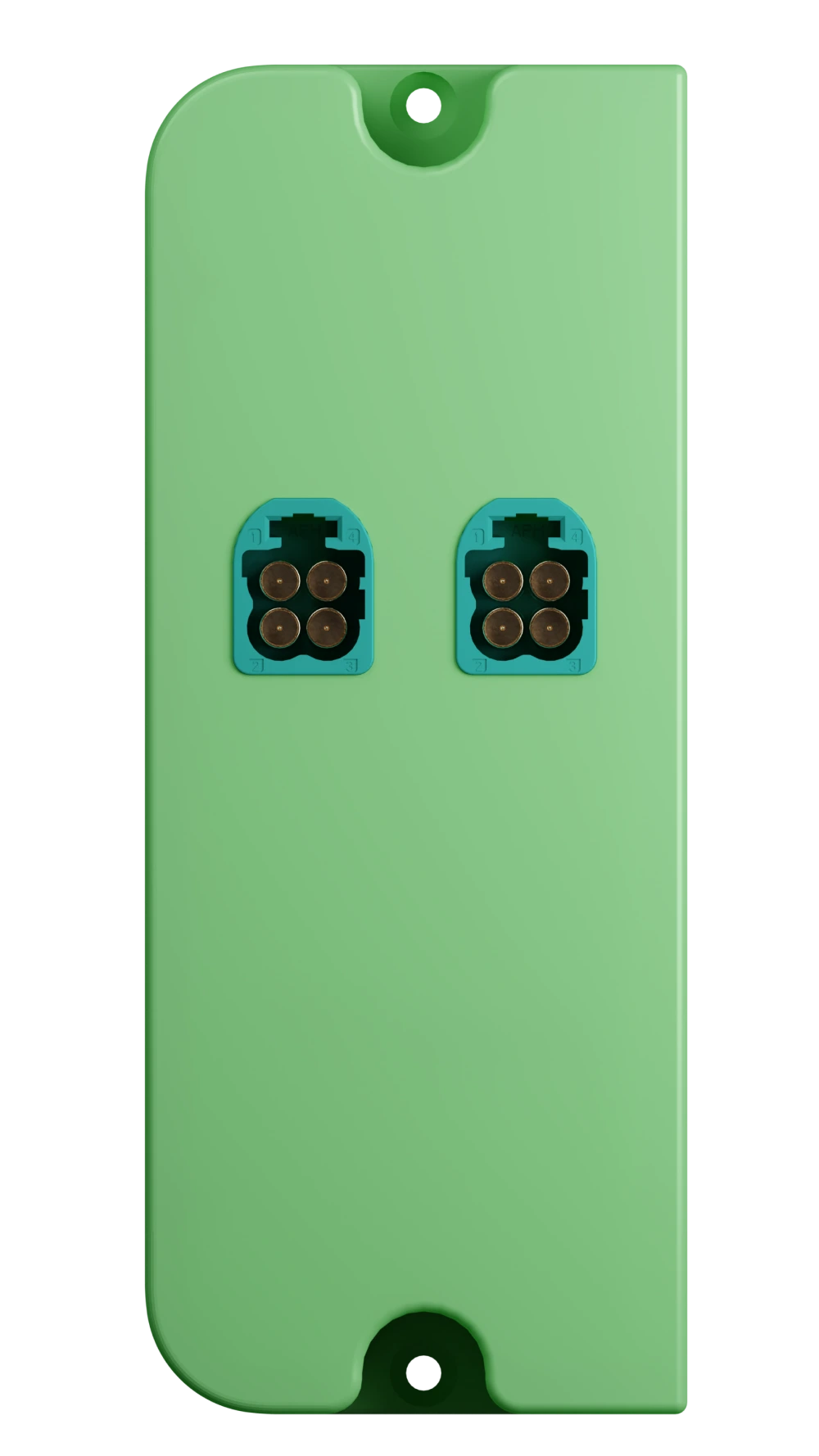

Up to eight GMSL-2 cameras over long-distance coax - built for vehicles & machines

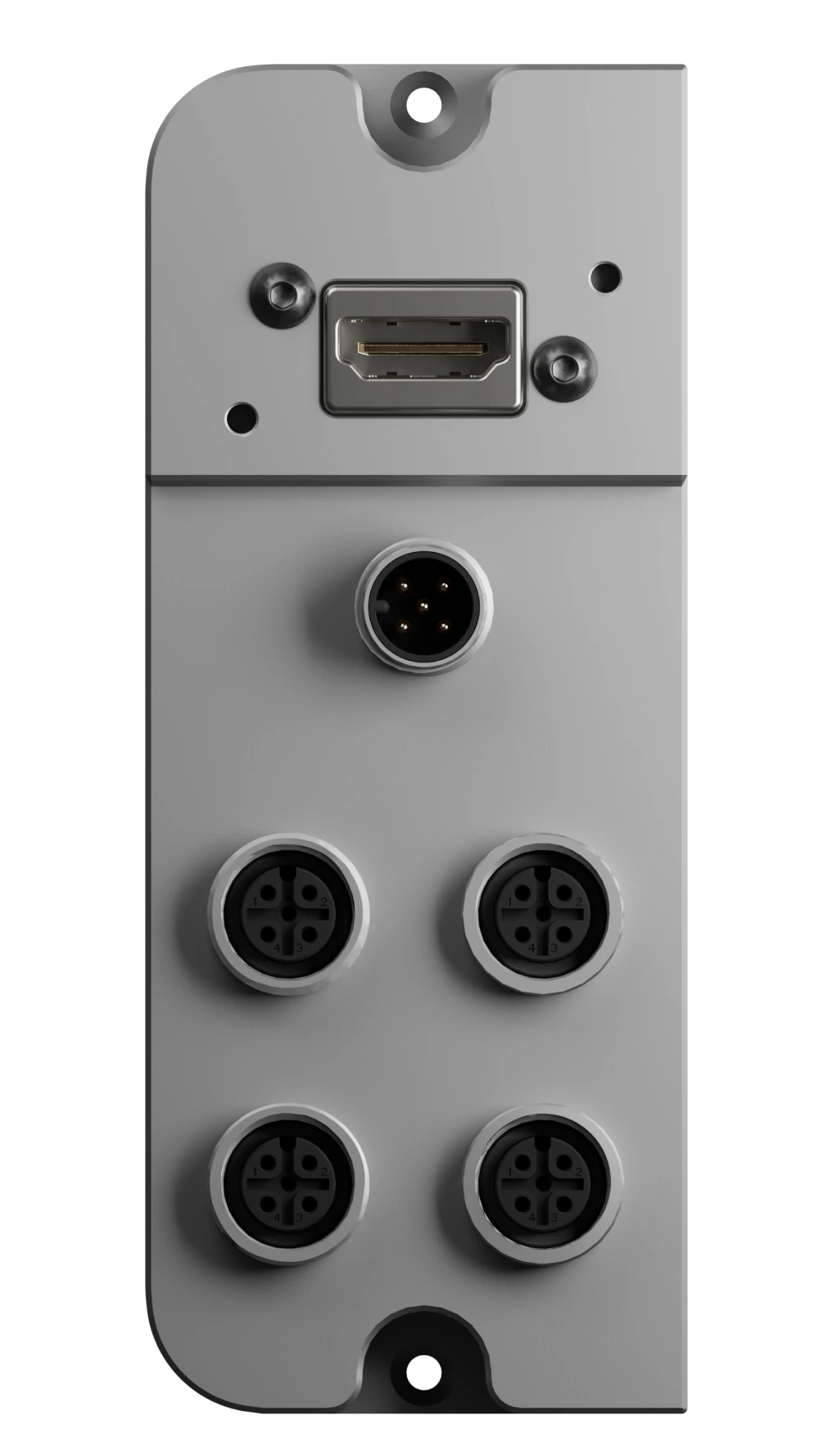

Need a different interface? We design the module, and share the spec so you can too.
Communication modules
Send insights wherever they need to go - to your local network, the cloud, or a fleet backend - over the protocol that fits your deployment.

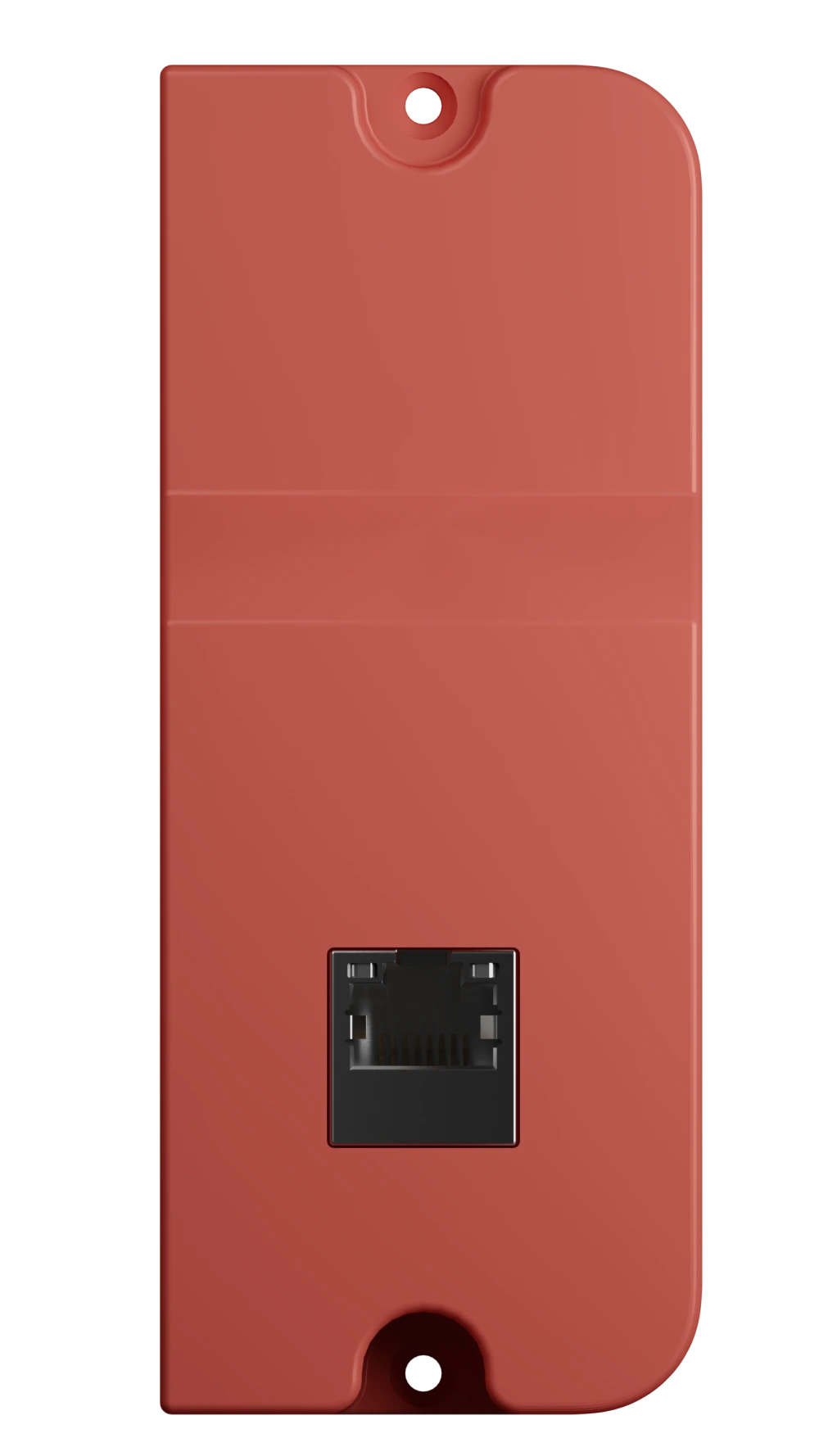

For most applications, this is all you need. A Gigabit Ethernet connection to link up with your local network gives you the ability to feed back the Blox output to your core systems and to have a seamless integration with your local network.
When cabling is challenging, wifi is keeps you connected with your smart device. This module supports the 802.11 a/b/g/n/ac standards and the BT 4.0 standard. It supports both the 5GHz and 2.4GHz bands and allows a wifi data transfer rate up to 150Mbps and this for both receiving and transmitting.

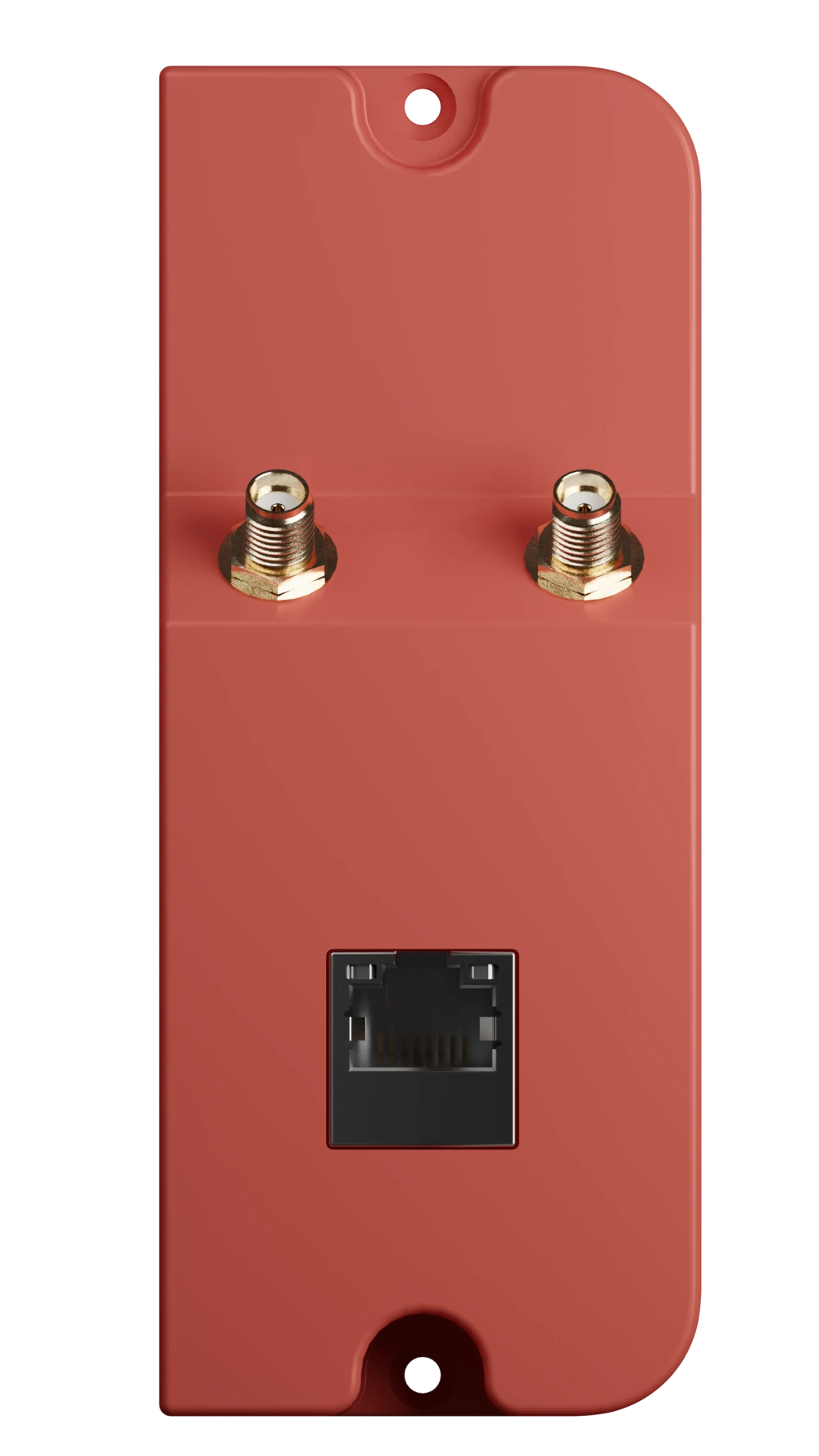

Best of both worlds. Using the wifi-connection to manage your device, and keep the GigE for processing your application outputs. On top of the GigE connection, this module supports the 802.11 a/b/g/n/ac standards and the BT 4.0 standard. It supports both the 5GHz and 2.4GHz bands and allows a wifi data transfer rate up to 150Mbps and this for both receive and transmit.

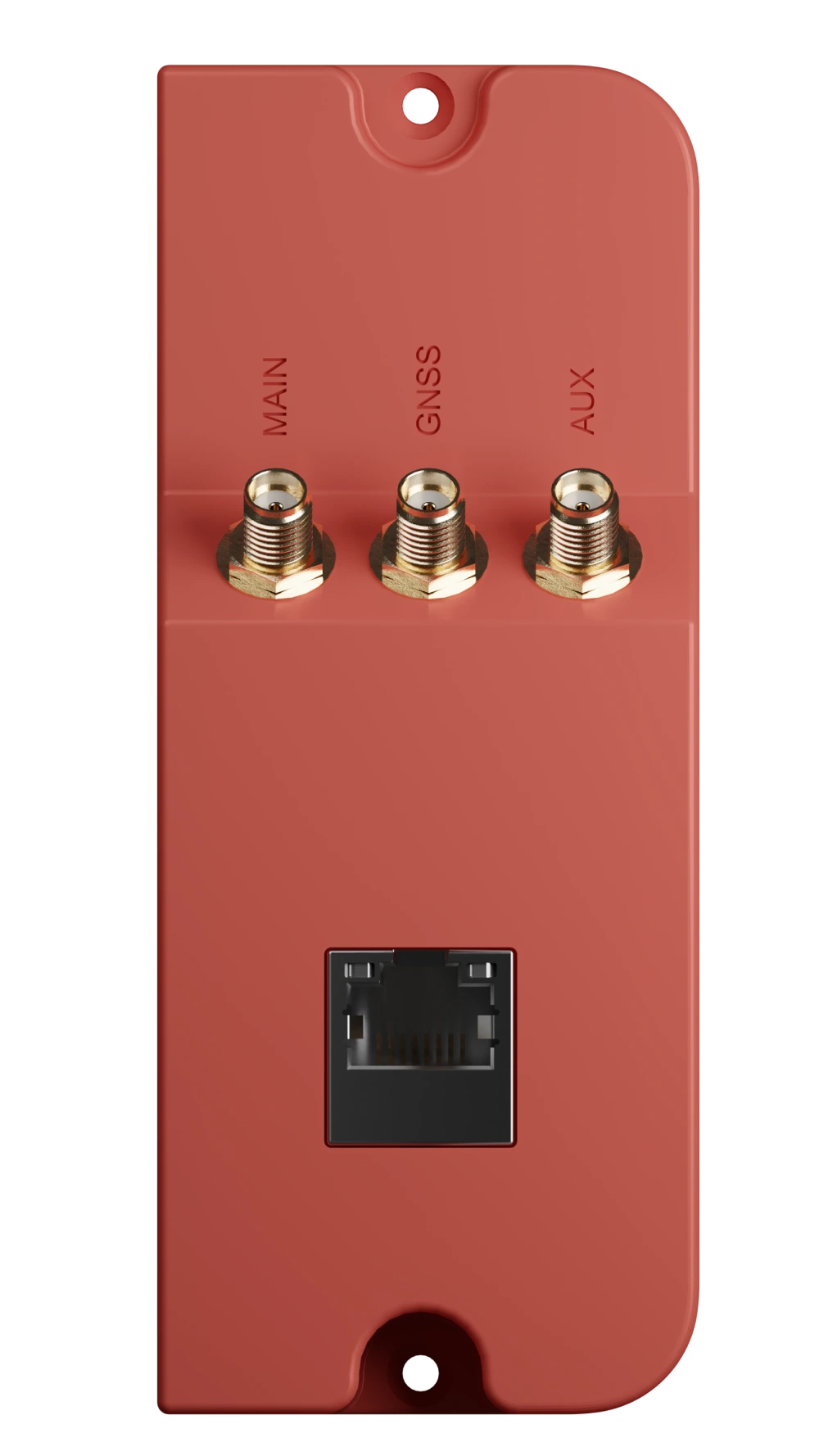

A lot of edge applications run in a context where local connectivity can be challenging. Enter the LTE module. This module adds a 4G LTE CAT-4 modem with GNSS. This gives you the ability to have a downlink data transfer up to 150Mbps and an uplink transfer up to 50Mbps . The module has worldwide support and is ideal for your mobile edge intelligence application.The integrated GNSS modules gives you a high accuracy positioning system which allows you to determine the exact location of Blox.

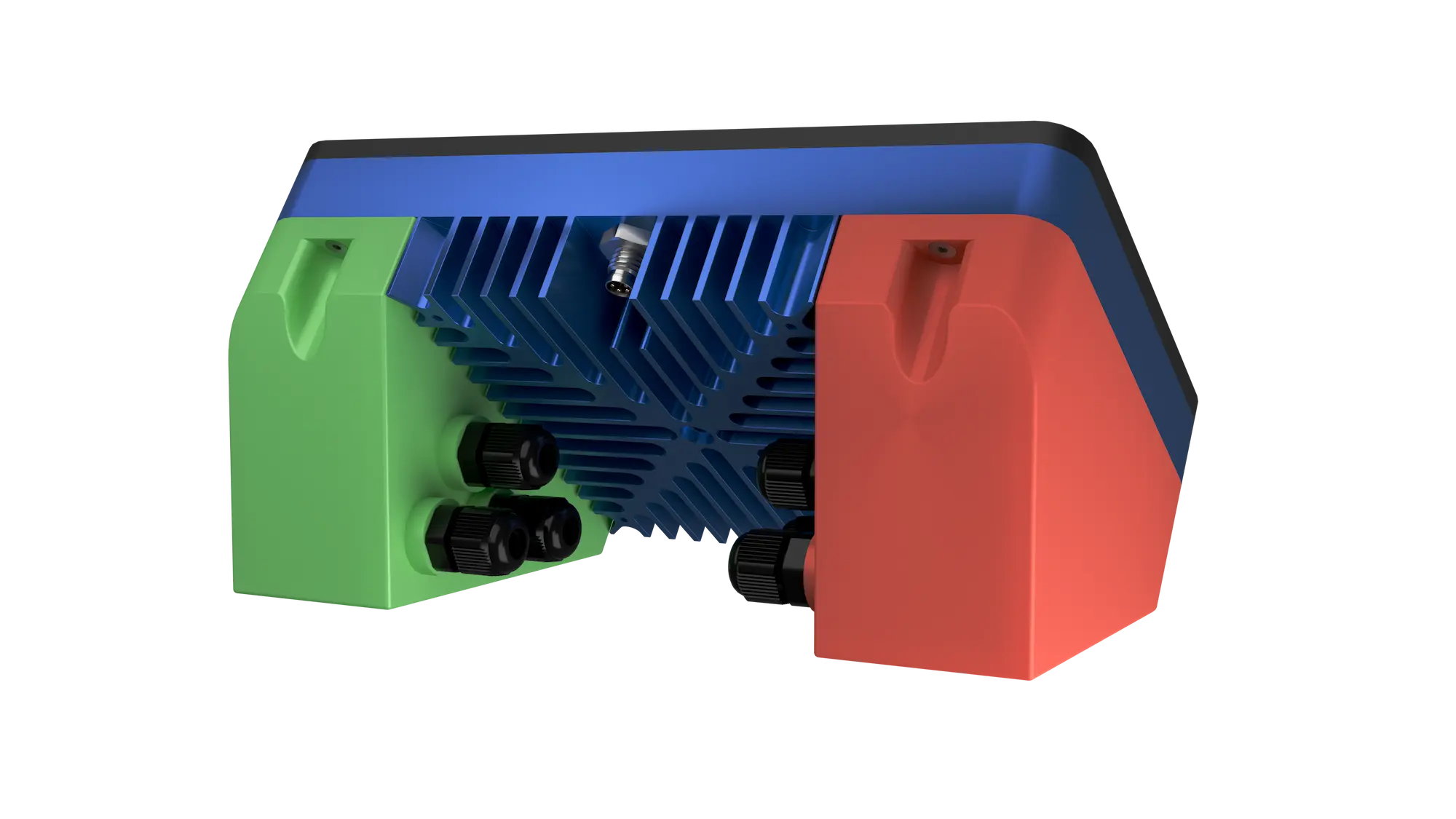

Our platform is fully modular and we're happy to be build the module you need. We even take it further: we're fully transparant about our design so you can create your own modules! Ping us at hello@ai-blox.com for more information
The right GPU for your case
Our Blox platform can evolve with your application. Our modular design allows you to choose between multiple Nvidia Jetson Orin GPU modules. Whenever your application needs to change, your hardware can evolve as well.
Up to 40 TOPS for modern computer vision and edge generative AI
Up to 100 TOPS for advanced robotics and multi-stream perception

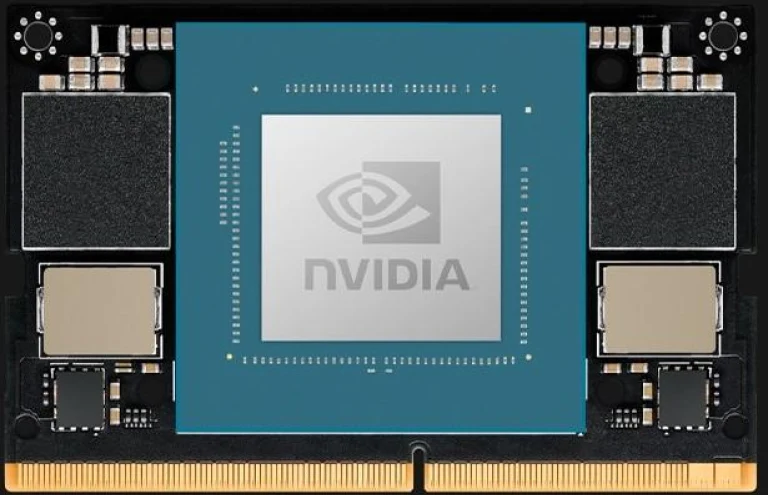

Jetson Orin Nano 4GB
Jetson Orin Nano 8GB

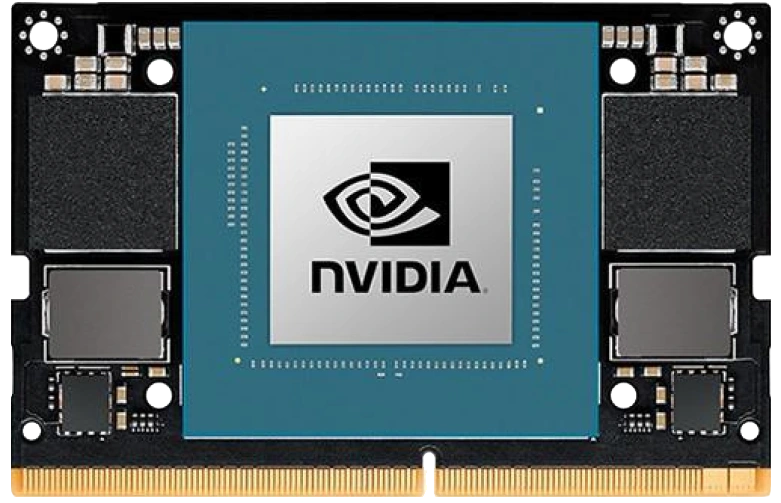

Jetson Orin NX 8GB
Jetson Orin NX 16GB
AI perf
20 TOPS
40 TOPS
70 TOPS
100 TOPS
GPU
384-core NVIDIA Volta GPU with 48 Tensor Core
1024-core NVIDIA Ampere Architecture GPU with 32 tensor cores
1024-core NVIDIA Ampere Architecture GPU with 32 tensor cores
1024-core NVIDIA Ampere Architecture GPU with 32 tensor cores
CPU
6-core Arm Cortex-A78AE v8.2 64bit CPU 1.5 MB L2 + 4 MBL3
6-core Arm Cortex-A78AE v8.2 64bit CPU 1.5 MB L2 + 4 MBL3
8-core Arm Cortex-A78AE v8.2 64bit CPU 2 MB L2 + 4 MBL3
8-core Arm Cortex-A78AE v8.2 64bit CPU 2 MB L2 + 4 MBL3
Display
Optional: 7" with integrated capacitive touch screen
Memory
4GB 64-bit LPDDR5 34 GB/s
8GB 128-bit LPDDR5 68 GB/s
8GB 128-bit LPDDR5 102,4 GB/s
16GB 128-bit LPDDR5 102,4 GB/s
Storage
External NVMe
External NVMe
External NVMe
External NVMe
Power
5W-10W
7.5W-15W
10W-20W
10W-25W
blox_os
Coming soon

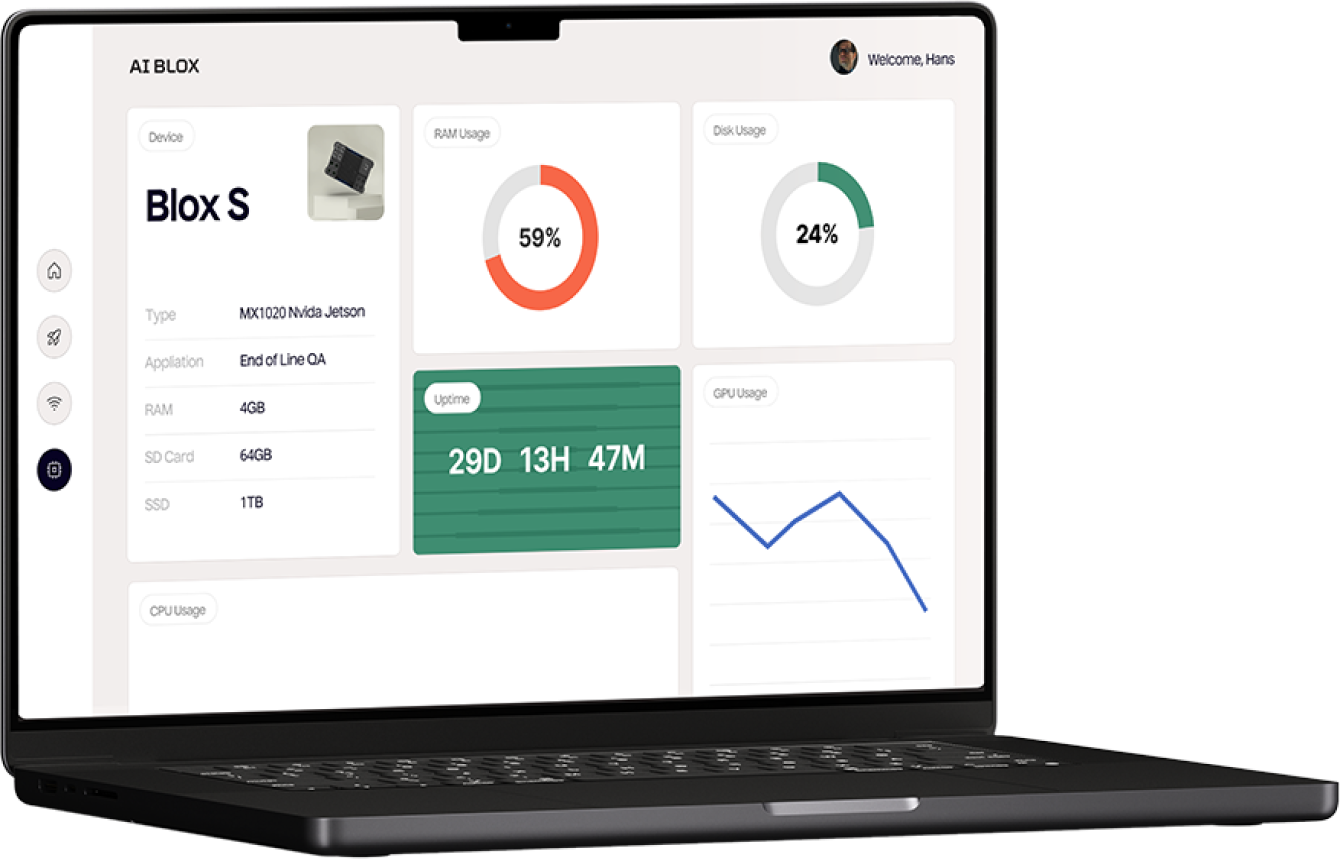

The software layer that turns hardware into infrastructure
Blox_OS is what lets you operate Blox at fleet scale - not one device but hundreds. Provision, deploy, monitor and update remotely, with security built in.
- Built for the edge - Efficient, performant Yocto-based OS tuned for Jetson
- Fleet management - Deploy & update your whole fleet from one place
- Secure by design - Hardened data and device security protocol
Product Overview
One platform. Pick your form factor
Blox_V
Rugged compute for heavy-duty and mobile machines
- IP-67 rated design
- Connects up to 6 cameras (GMSL-2 or IP)
- Ignition control
Need something purpose-built?
Start from the Blox platform and we'll engineer a custom device around your exact functional and environmental requirements - a headstart, not a blank page.
contact
Start building on AI-Blox
Stop talking, start building. Tell us what you’re deploying and we’ll help you get physical AI into the field — from first prototype to full fleet.
